Publication:

Analysis and Design of Monolithic Resistors with a Desired Temperature Coefficient Using Contacts



Authors:

Nima Sadeghi1, Iman Sadeghi2, Shahriar Mirabbasi1

1University of British Columbia, 2Google


Journal

IET Circuits, Devices Systems 2013


Abstract

A technique for implementing monolithic resistors with a desired temperature coefficient (TC) over a wide temperature range is introduced. A typical monolithic resistor consists of a core resistive layer terminated with contact layers on each end. In a typical process, there are core resistive layers that have TCs with opposite sign of that of the contacts. The authors propose to take advantage of this property and distribute a certain number of contacts across the core resistor to achieve a desired overall TC for monolithic resistors. This TC can be negative, zero or positive. The methodologies for designing such resistors are presented. As a proof-of-concept, several resistor structures have been designed and implemented in a 0.13 μm complementary metal-oxide semiconductor technology. The simulation and measurement results over the temperature range of 25-200°C confirm the validity of the proposed technique.


Resources:

Publication
pdf
IEEE Xplore Digital Library
IEEE


Pages:

[1] [2] [3] [4] [5] [6] [7] [8]

Content:

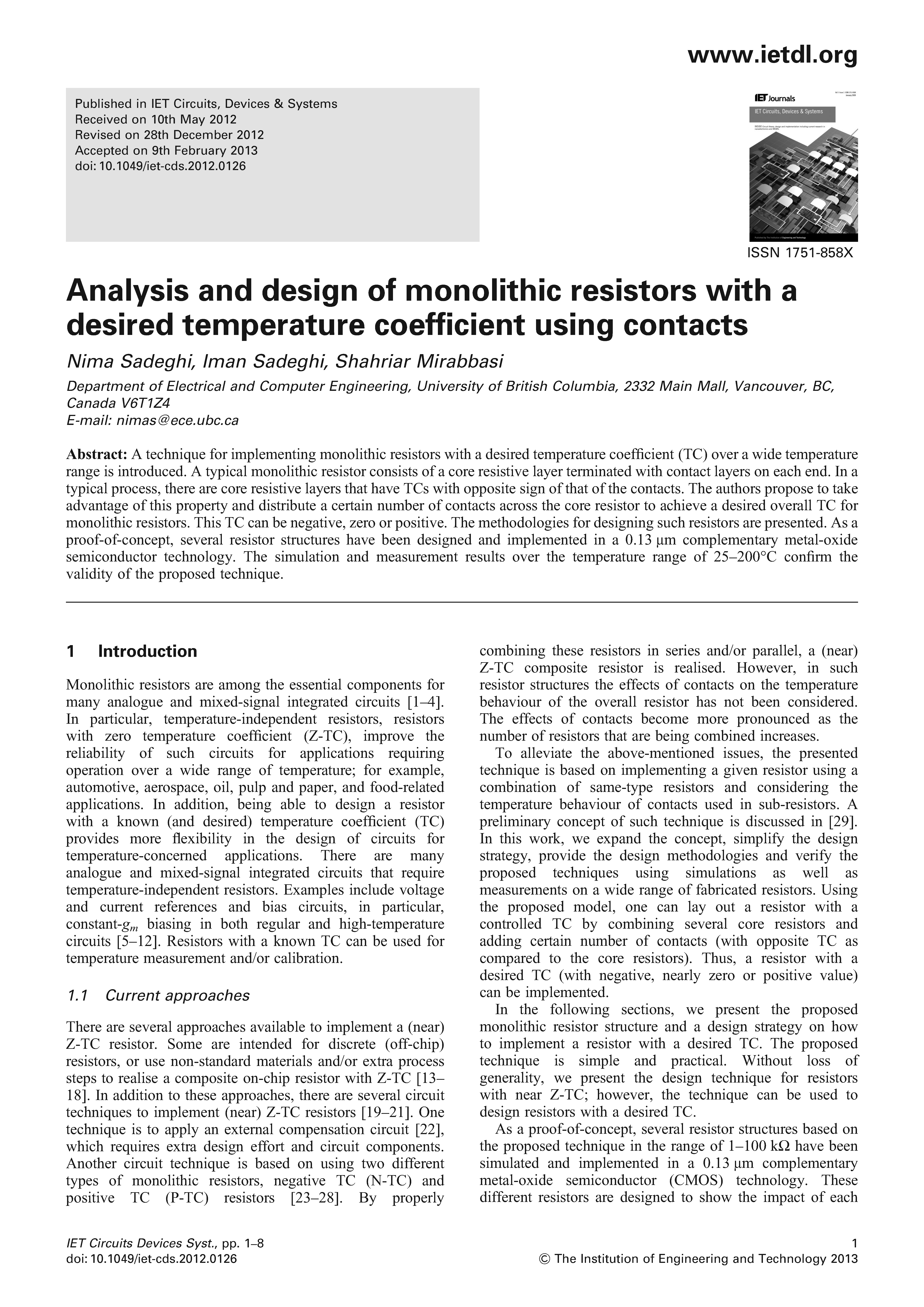

[Page 1]
Analysis and Design of Monolithic Resistors with a Desired Temperature Coefficient Using Contacts Page 1

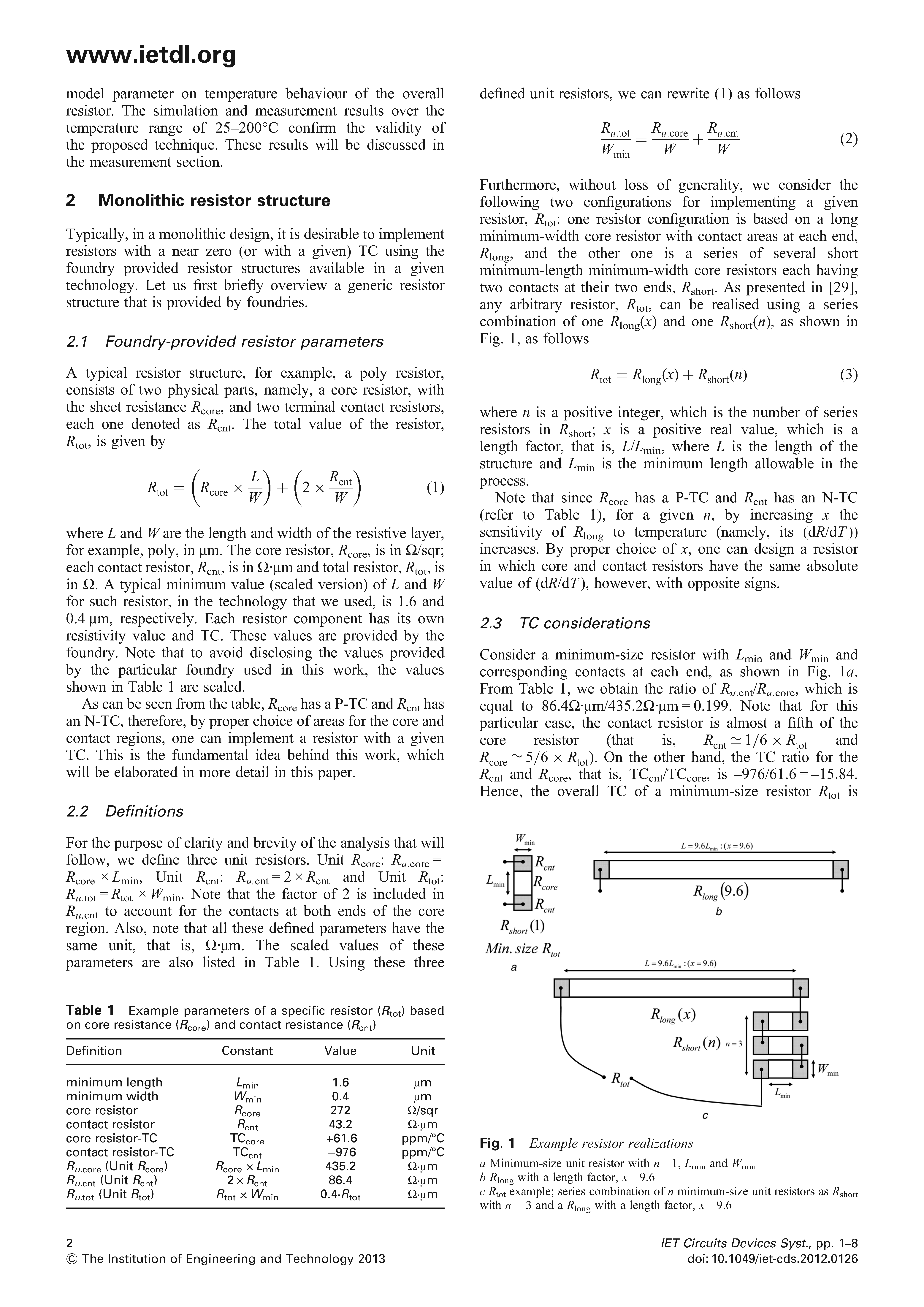

[Page 2]
Analysis and Design of Monolithic Resistors with a Desired Temperature Coefficient Using Contacts Page 2

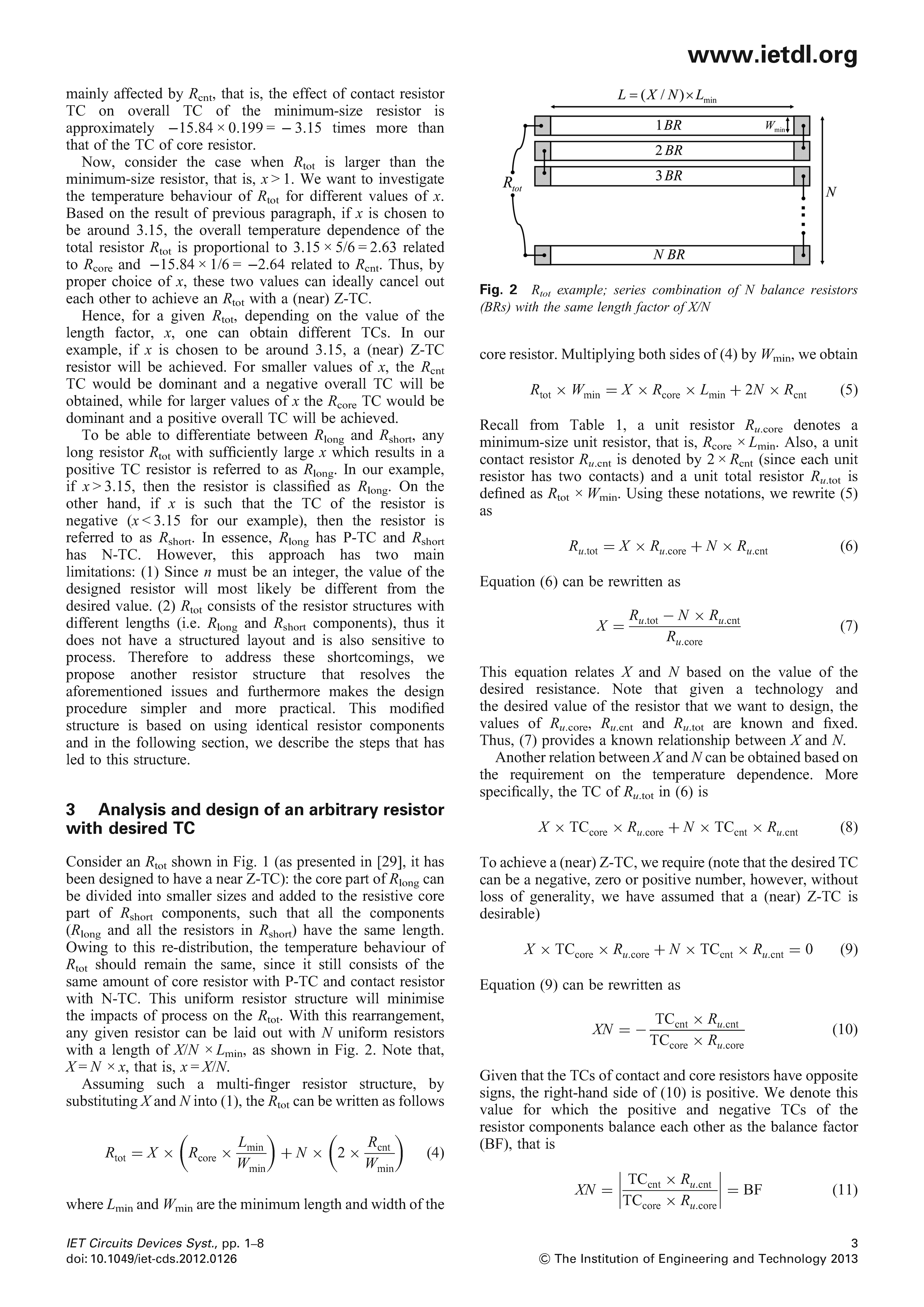

[Page 3]
Analysis and Design of Monolithic Resistors with a Desired Temperature Coefficient Using Contacts Page 3

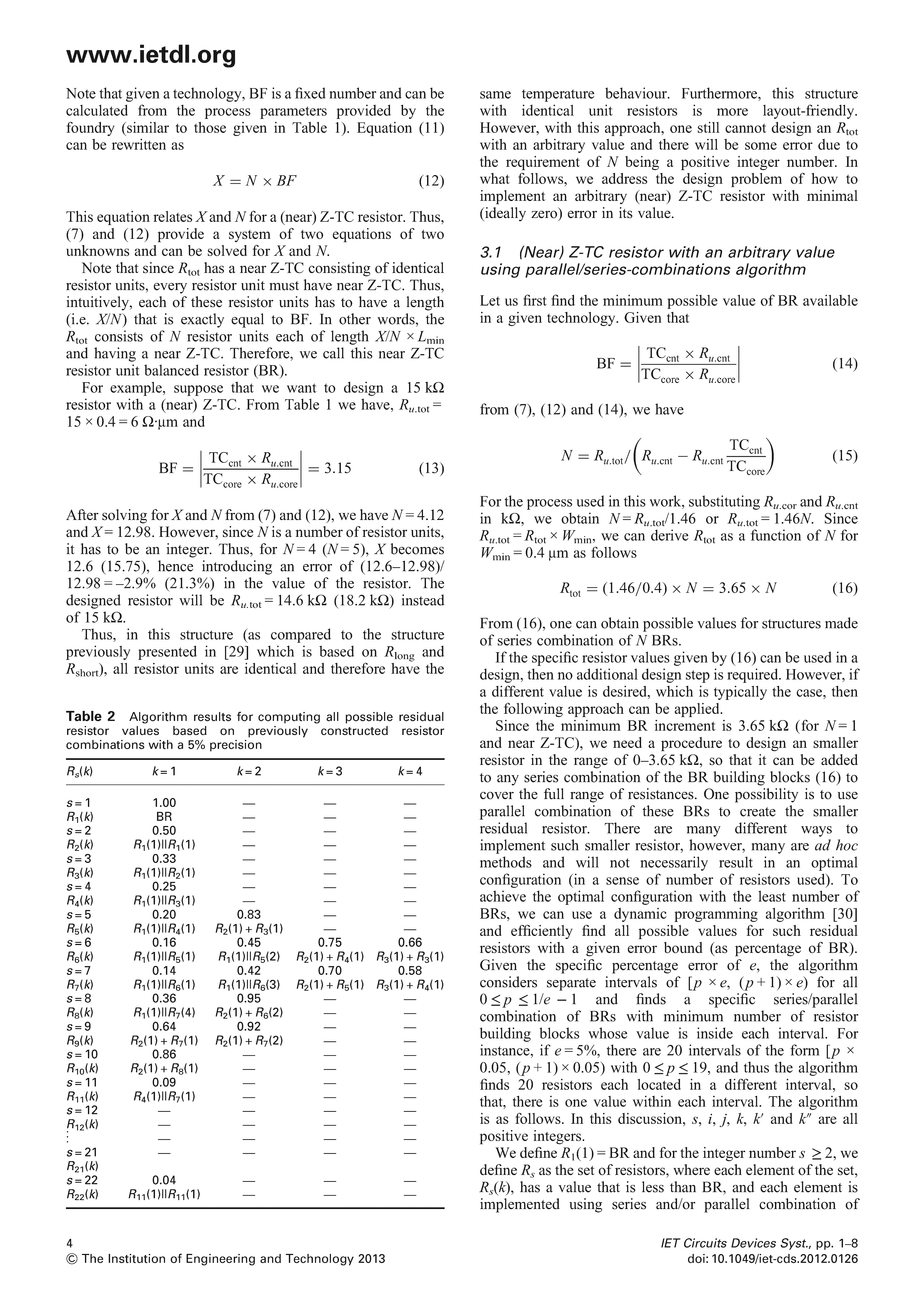

[Page 4]
Analysis and Design of Monolithic Resistors with a Desired Temperature Coefficient Using Contacts Page 4

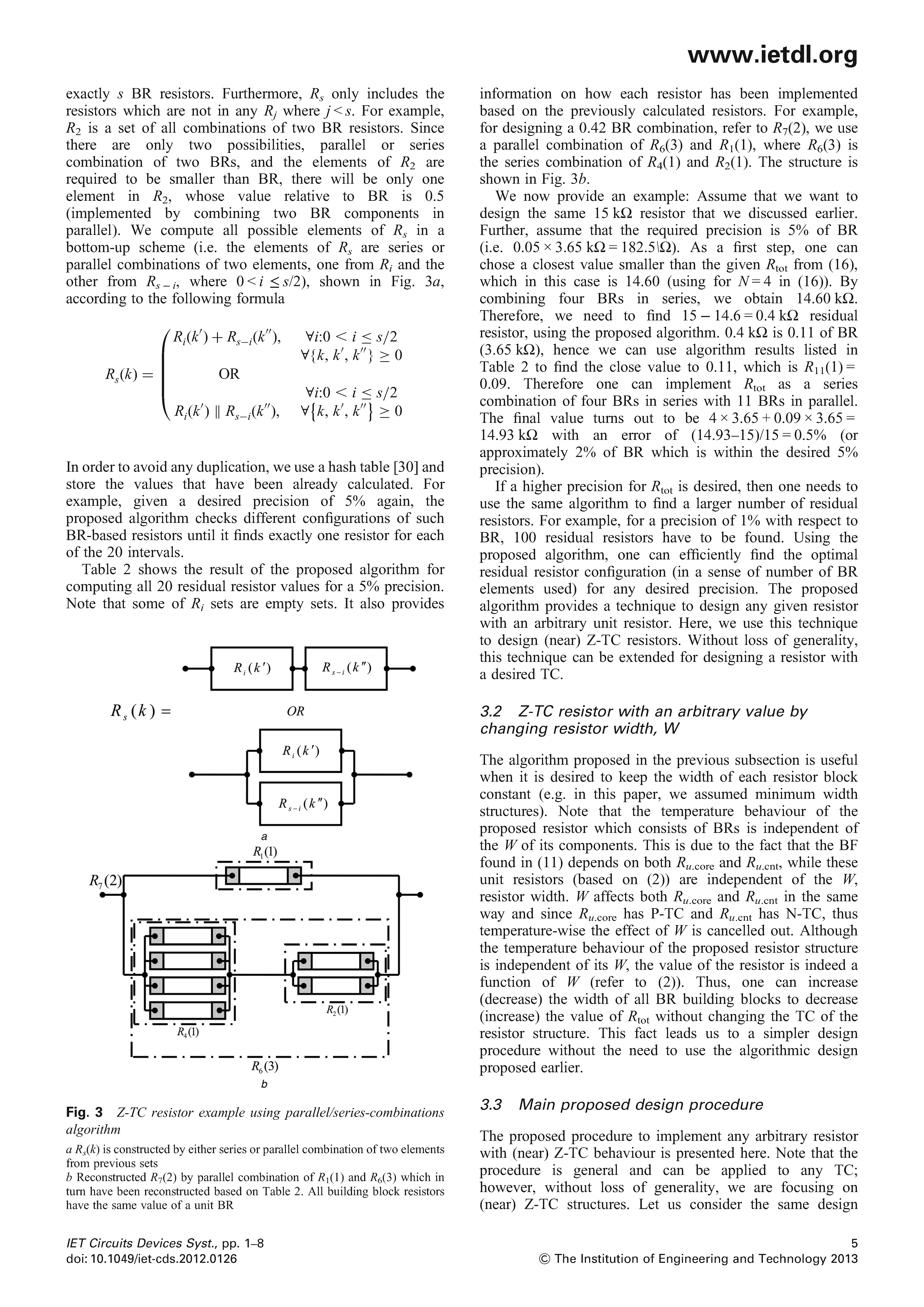

[Page 5]
Analysis and Design of Monolithic Resistors with a Desired Temperature Coefficient Using Contacts Page 5

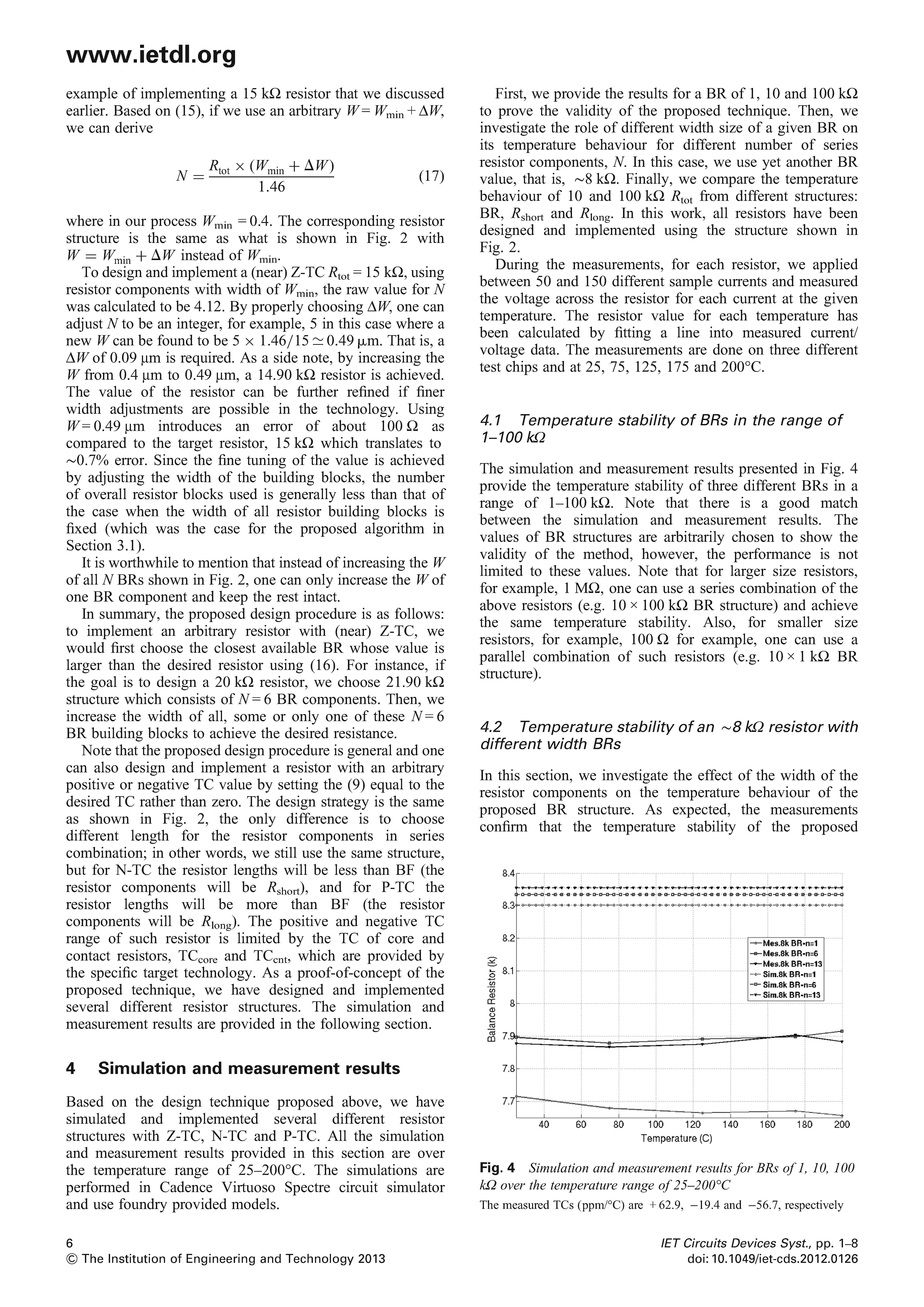

[Page 6]
Analysis and Design of Monolithic Resistors with a Desired Temperature Coefficient Using Contacts Page 6

[Page 7]

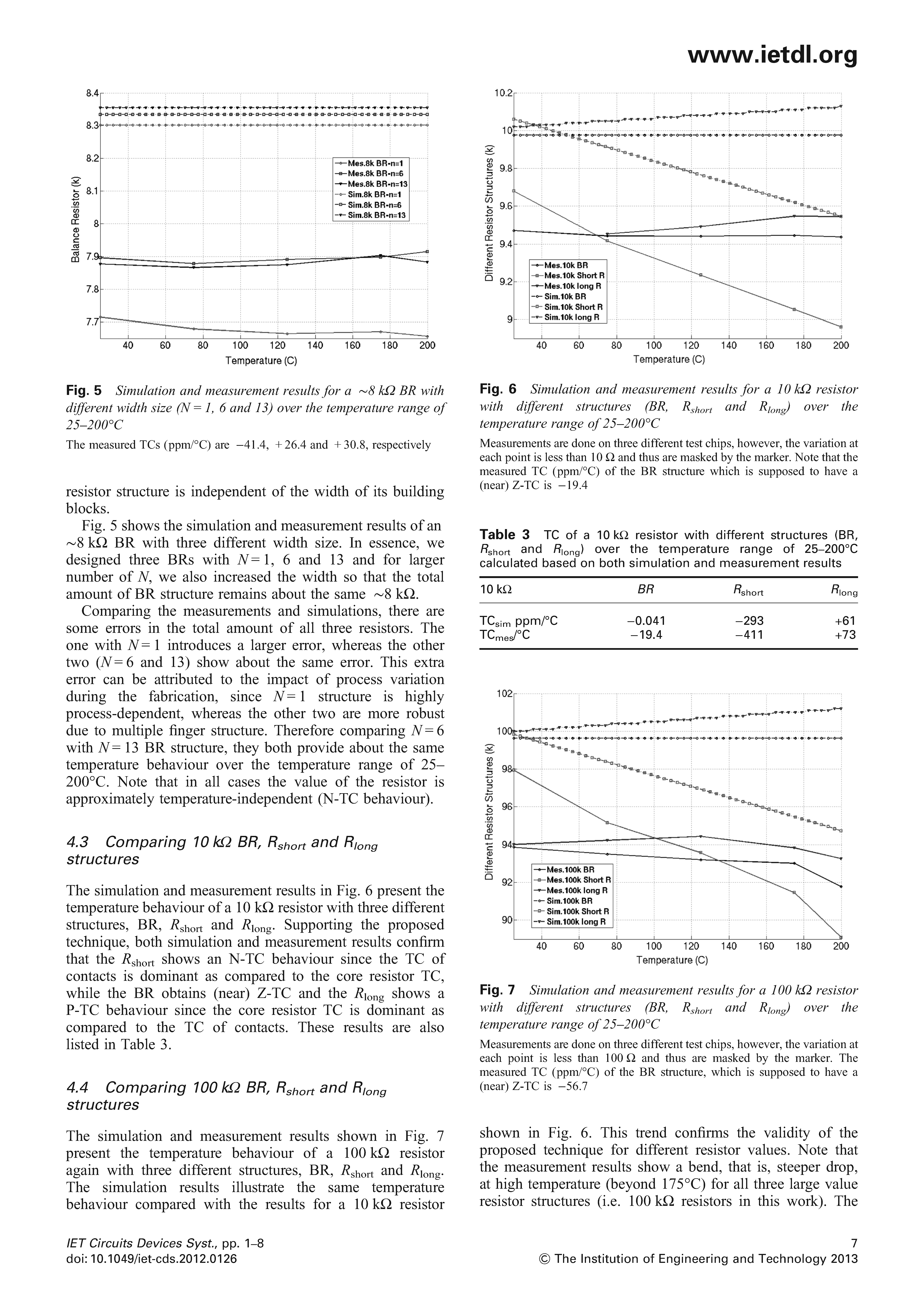

Analysis and Design of Monolithic Resistors with a Desired Temperature Coefficient Using Contacts Page 7

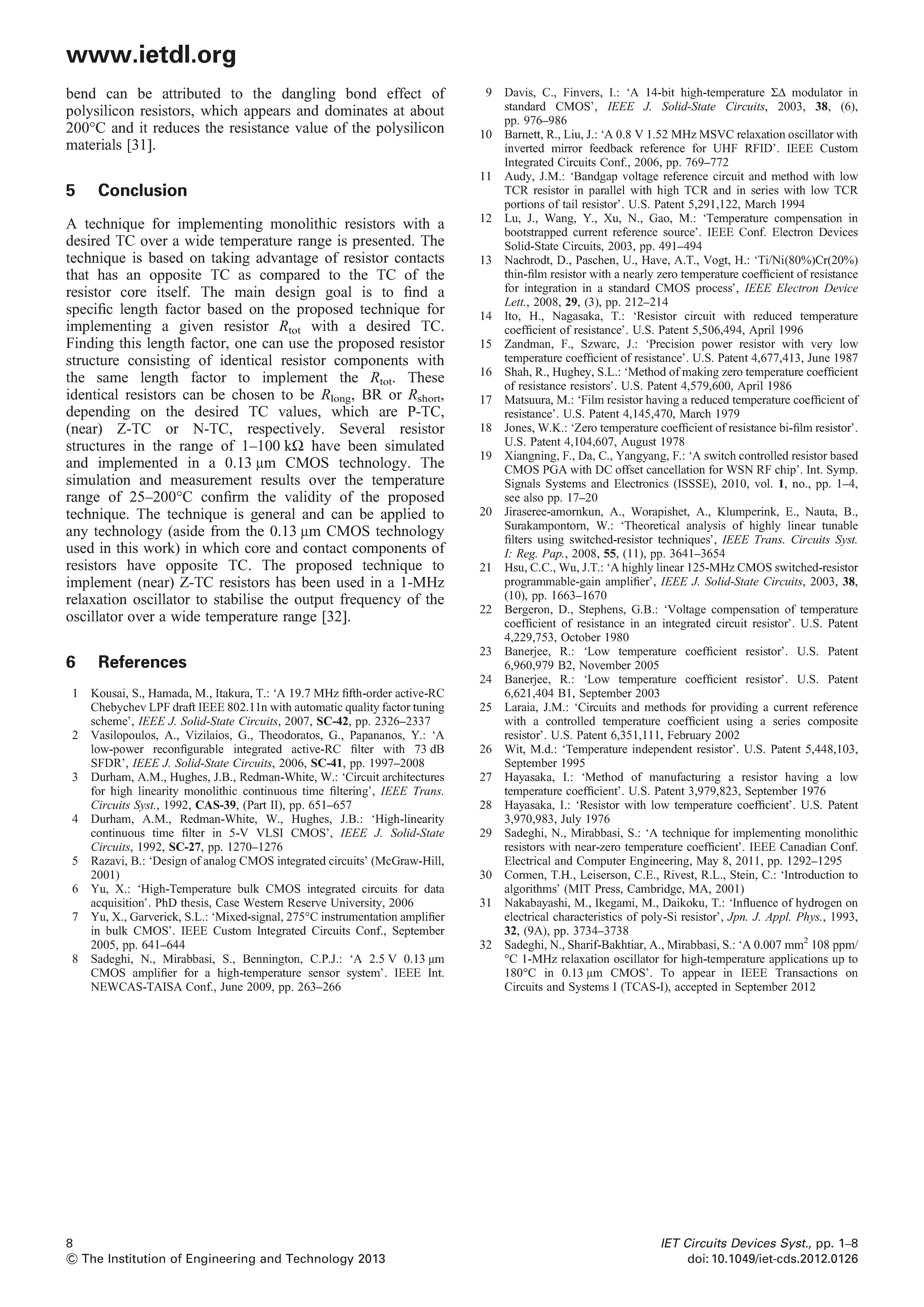

[Page 8]
Analysis and Design of Monolithic Resistors with a Desired Temperature Coefficient Using Contacts Page 8

[Back to Top]

Pages:

[1] [2] [3] [4] [5] [6] [7] [8]

Text Reference:

Nima Sadeghi, Iman Sadeghi, Shahriar Mirabbasi. Analysis and Design of Monolithic Resistors with a Desired Temperature Coefficient Using Contacts. IET Circuits, Devices & Systems Volume: 7, Issue: 4, July 2013.

BibTex Reference:


@article{sadeghi-2013-analysis-and-design-of-monolithic-resistors-with-a-desired-temperature-coefficient-using-contacts,
	author = {Sadeghi, Nima and Sadeghi, Iman and Mirabbasi, Shahriar},
	title = {Analysis and Design of Monolithic Resistors with a Desired Temperature Coefficient Using Contacts},
	journal = {IET Circuits, Devices & Systems},
	volume = {7},
	number = {4},
	month = jul,
	year = {2013},
	pages = {185 -- 192},
}
